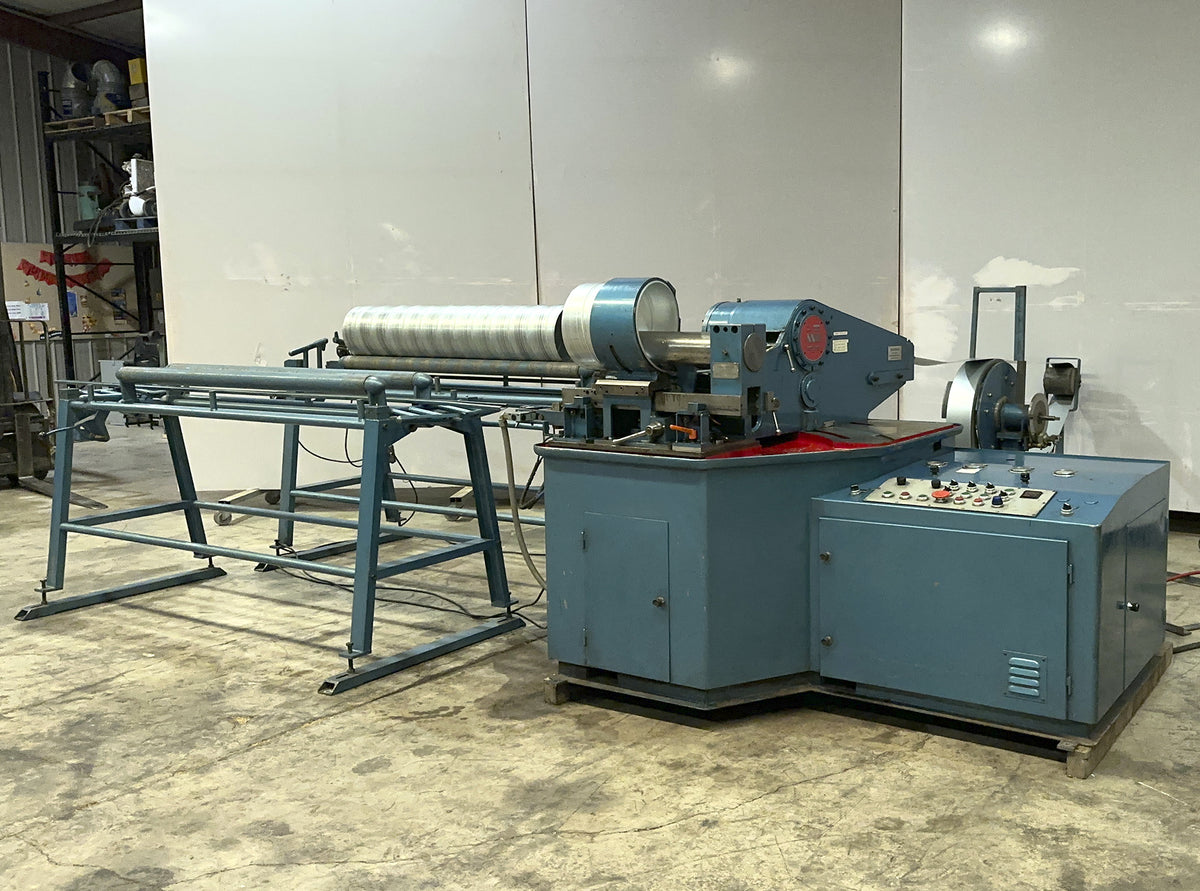

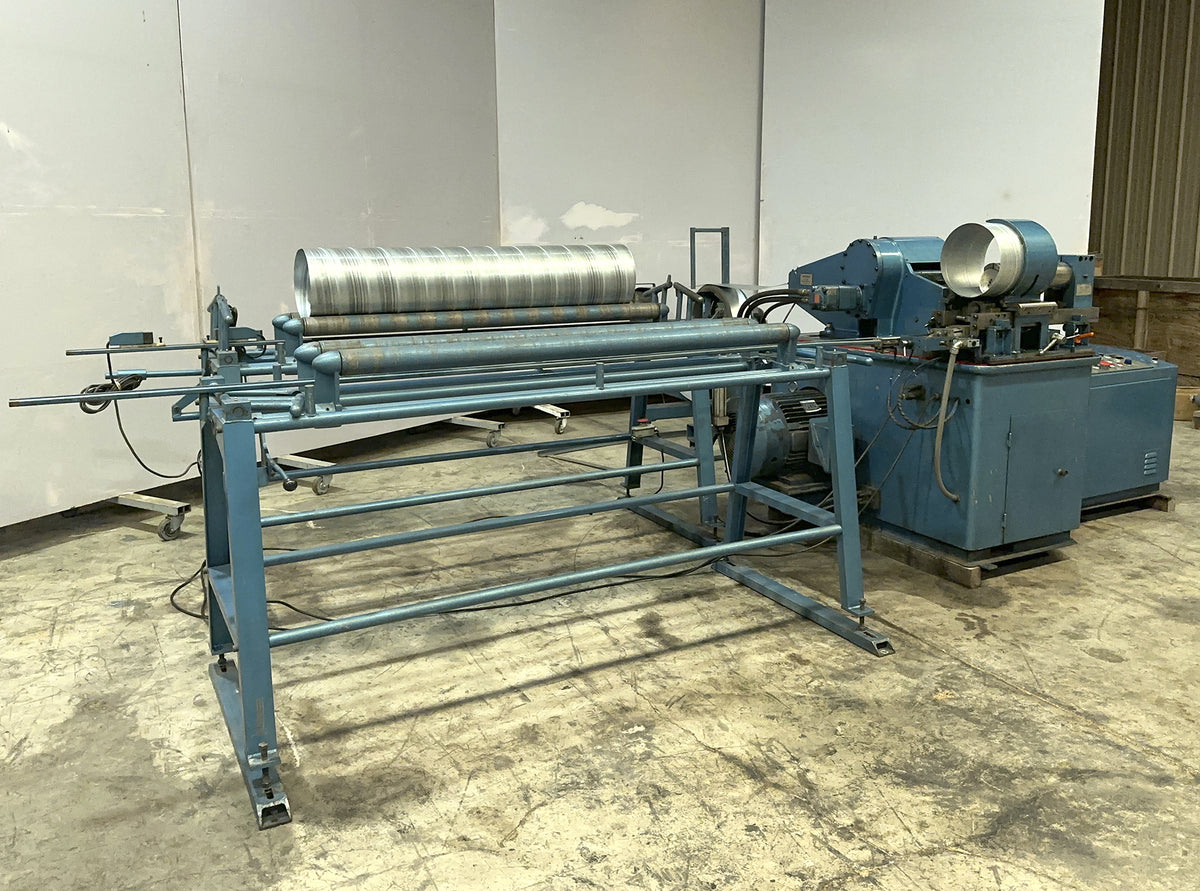

Spiral Helix 200-H Tubeformer 2003

Specification

• Make: Spiral Helix
• Model: 200-H
• Serial: I454-01
• Product Code: 03040137209

Product Information

• Seam: Spiral seam

• Min. Diameter: 4"

• Max. Diameter: 102"

• Min. Thickness: 30ga

• Max. Thickness: 14ga

• Speed: 80 - 255 ft/min

• Motor: 10hp

• Year: 2003

• Coil Inner Diameter: 50"

• Max. Coil Outer Diameter: 48"

Video: YouTube

Maximize your shop’s throughput with the Spiral Helix 200-H Spiral Tubeformer (2003), the ultimate solution for heavy-duty HVAC ductwork and industrial ventilation fabrication. Powered by a robust 10 HP motor, this high-performance spiral duct machine runs at variable speeds from 80 to 255 FPM, forming tight spiral seams across 30 to 14-gauge sheet metal. Designed to handle master coils up to 48" OD with a 50" ID, it effortlessly produces round spiral pipe from 4" up to 102" in diameter—making it a reliable, high-yield investment to boost fabrication output, lower operating costs, and drive ROI for your sheet metal operation.
