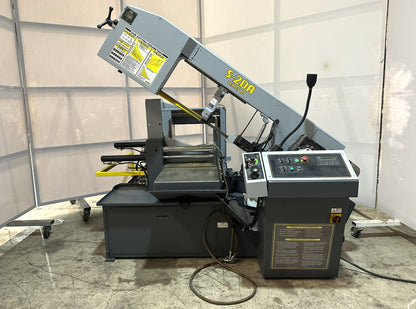

HydMech S-20A Band Saw

Specification

• Make: HydMech

• Model: S-20A
• Serial Number: 8A0906082
• Product Code: 03040140222

Product Information

• Type: Horizontal Pivot

• Capacity: 13" x 18"

• Coolant System: Yes

• Automatic Feed: Yes

• Angle Cut: 30° a 90°

• Band Size: 1" x 14'10"

• HP: 5

• Voltage / Phase: 480 / 3

• Weight: 3,100lbs

• Dimensions: 90" x 88" x 60"

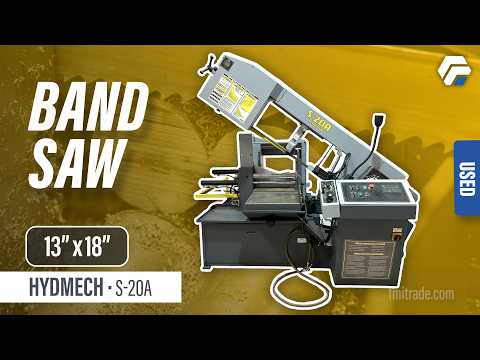

Video: YouTube

The HydMech S-20A automatic band saw is the ideal solution for optimizing industrial metal cutting in fabrication shops and high-volume production facilities. Powered by a 5 HP motor, a scissors-style horizontal pivot design, and a 13" x 18" cutting capacity, it delivers exceptional power to handle steel tubing, structural shapes, and heavy beams with tight tolerances. Its automatic shuttle feed speeds up cycle times while reducing operator intervention, while versatile 30° to 90° miter cutting and an integrated flood coolant system ensure clean cuts and extend the life of the 1" x 14'10" blade. Invest in the HydMech S-20A to boost shop throughput, minimize material scrap, and elevate your metalworking capabilities.
