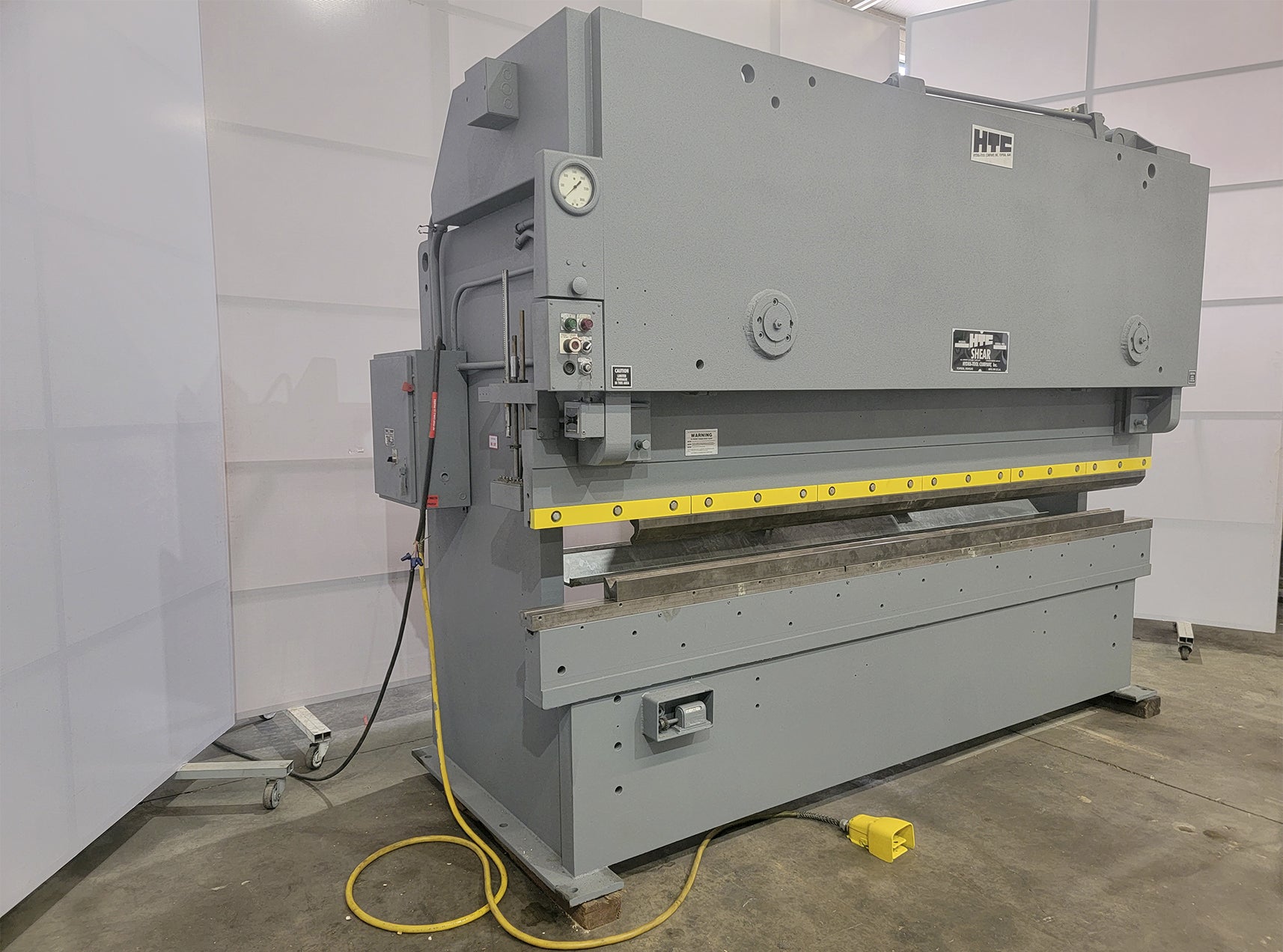

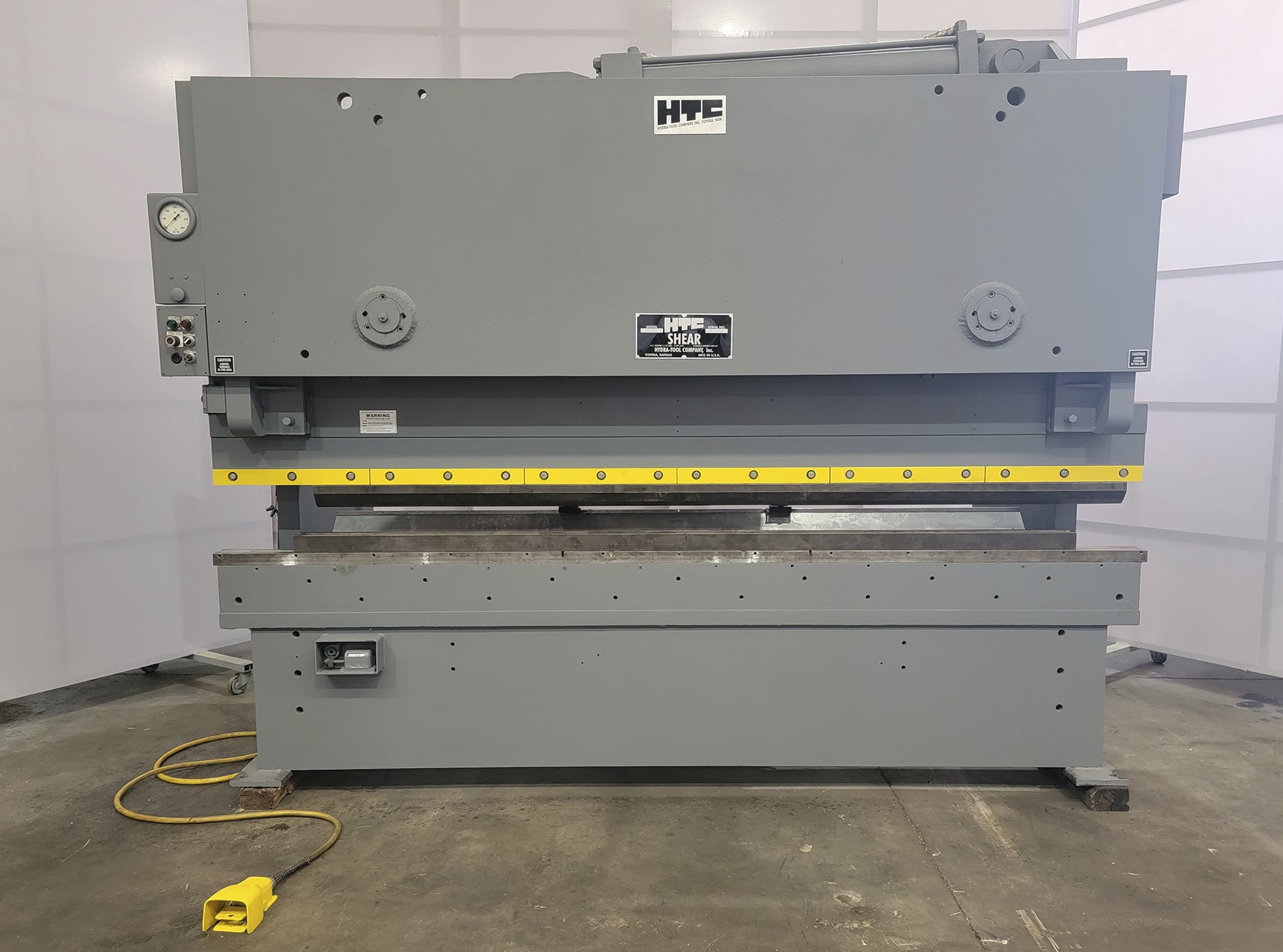

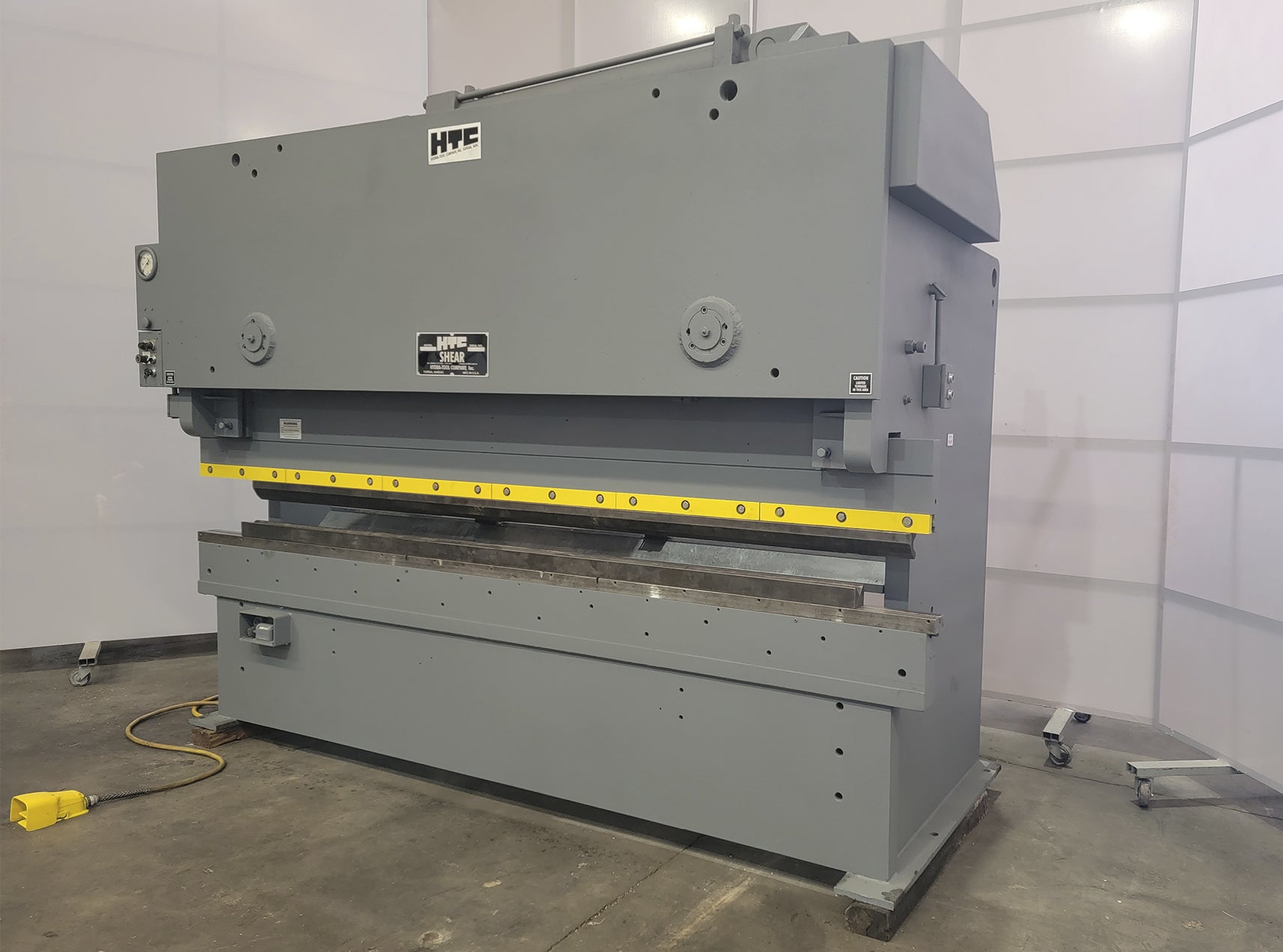

HTC 155-12 Press Brake 155ton

The HTC 155-12 hydraulic press brake is a high-performance machine built for demanding metal forming applications. With a 155-ton capacity, a 12-foot bed, and an 8-inch throat, it delivers the power and precision needed for bending heavy-gauge sheet metal and structural components. Its rugged frame and manual back gauge allow for quick setups and reliable repeatability, making it ideal for fabrication shops, metalworking facilities, and industrial manufacturers.
Designed to handle large parts with ease, the HTC 155-12 features a generous 10' 5" distance between side frames, enabling smooth operation on oversized workpieces.

Specification

• Make: HTC
• Model: 155-12
• Serial Number: 17963
• Product Code: 03040112223

Product Information

• Type: Hydraulic

• Capacity: 155ton

• Capacity: 12'

• Between housings: 10' 5"

• Between housings: 8"

• Backgauge: Manual

• Weight: 25,000lbs

• Dimensions: 66" x 146" x 118"

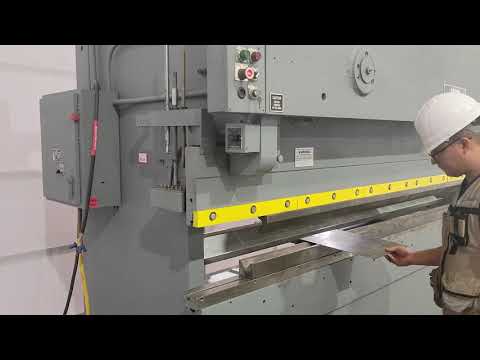

Video: YouTube
