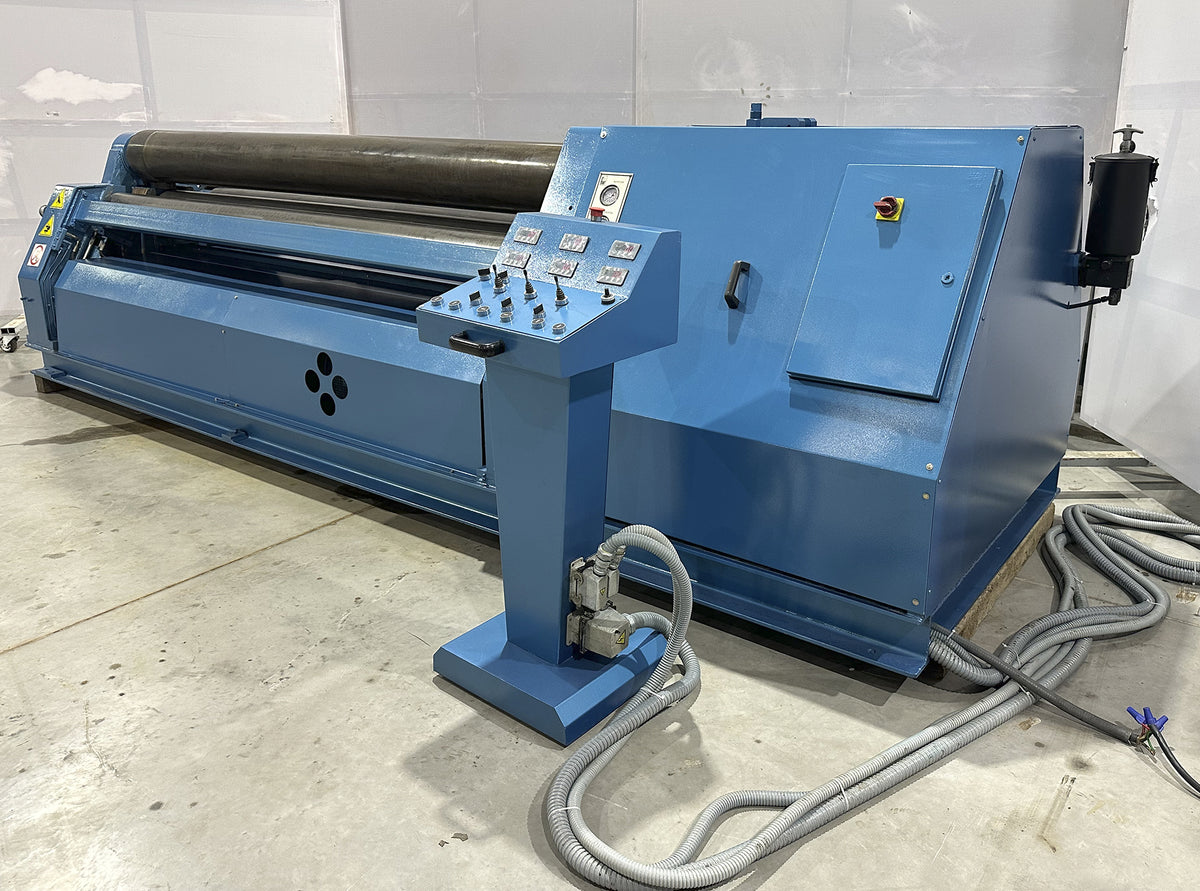

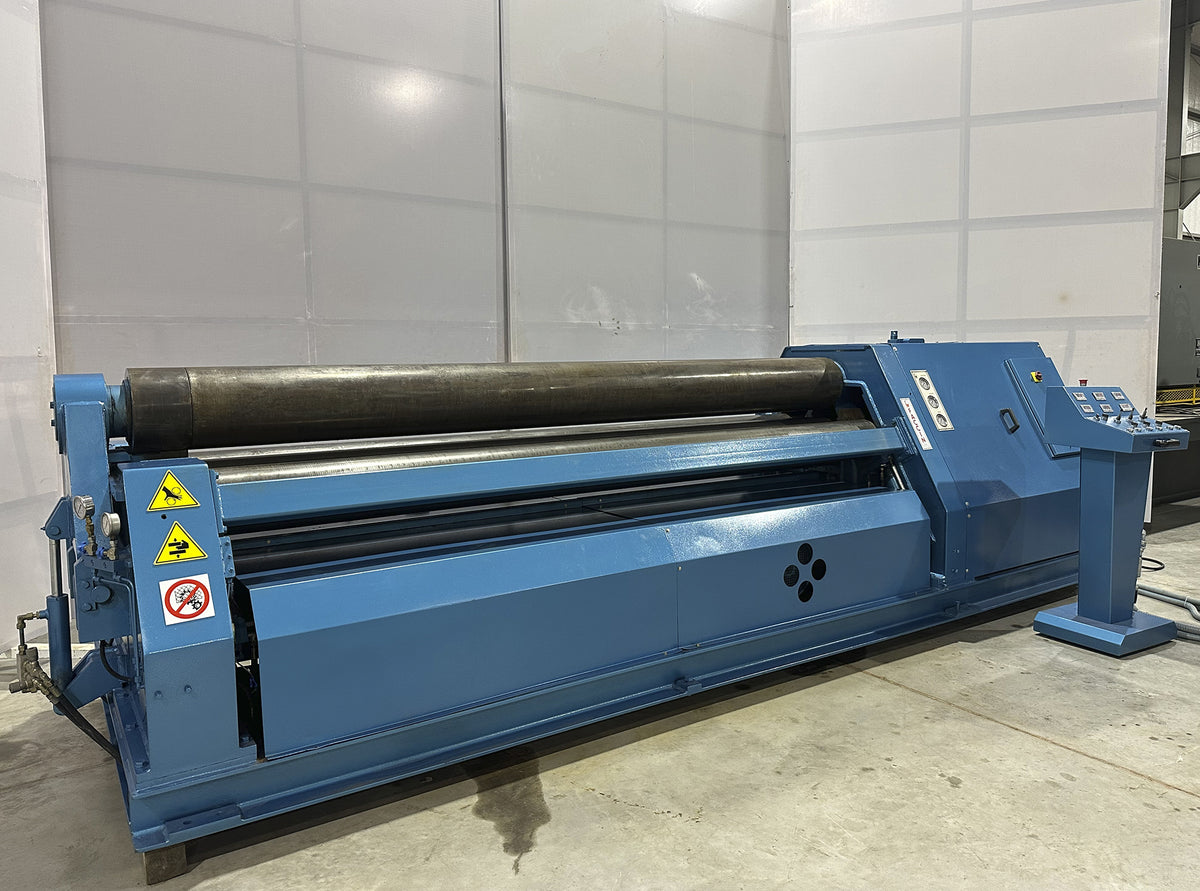

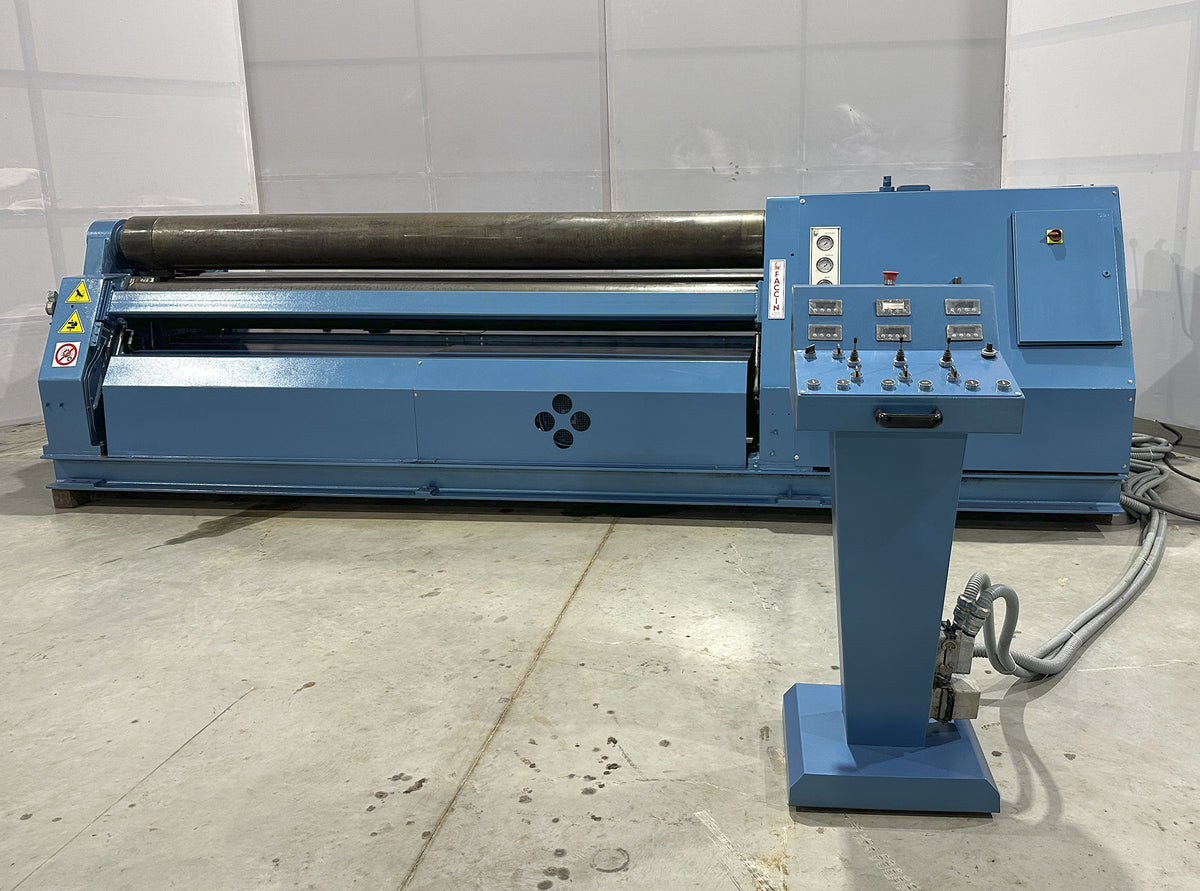

Faccin 4HEL Plate Roll 10' x 1/2"

Specification

• Make: Faccin
• Model: 4HEL
• Serial: 00092082-2108
• Product Code: 03040137208

Product Information

• Type: Hydraulic

• Capacity: 10' x 1/2"

• Diameter of rolls: Higher: 11.2" Sides: 8"

• Rolled type: Double initial pinch

• HP: 15

• Weight: 19,800kg

• Dimensions: 60" x 215" x 63"

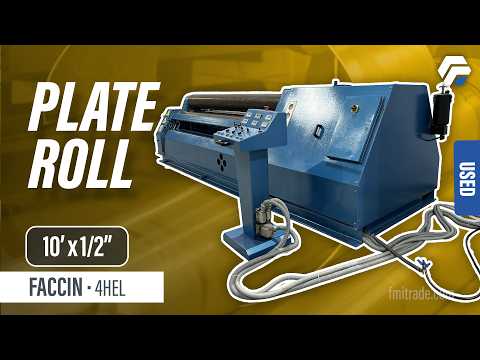

Video: YouTube

The Faccin 4HEL 4-roll hydraulic plate roll is the ideal high-precision solution for rolling and bending up to 10' x 1/2" sheet and plate. Engineered with a double-initial pinch system and powered by a heavy-duty 15 HP motor, this industrial plate bender optimizes cycle times, minimizes flat ends, and ensures perfectly true cylinders and shells for pressure vessels, heavy piping, and structural steel fabrication.
