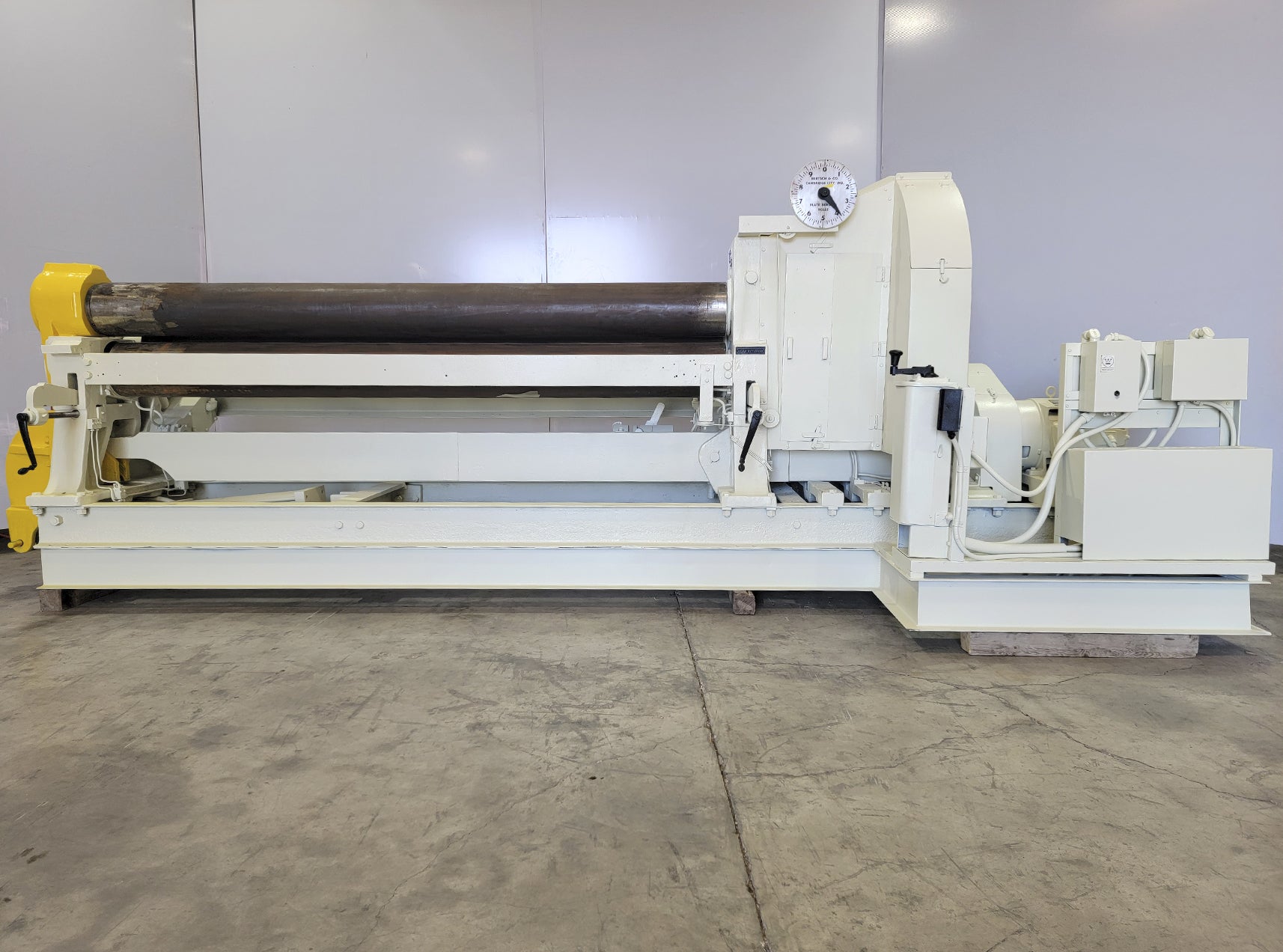

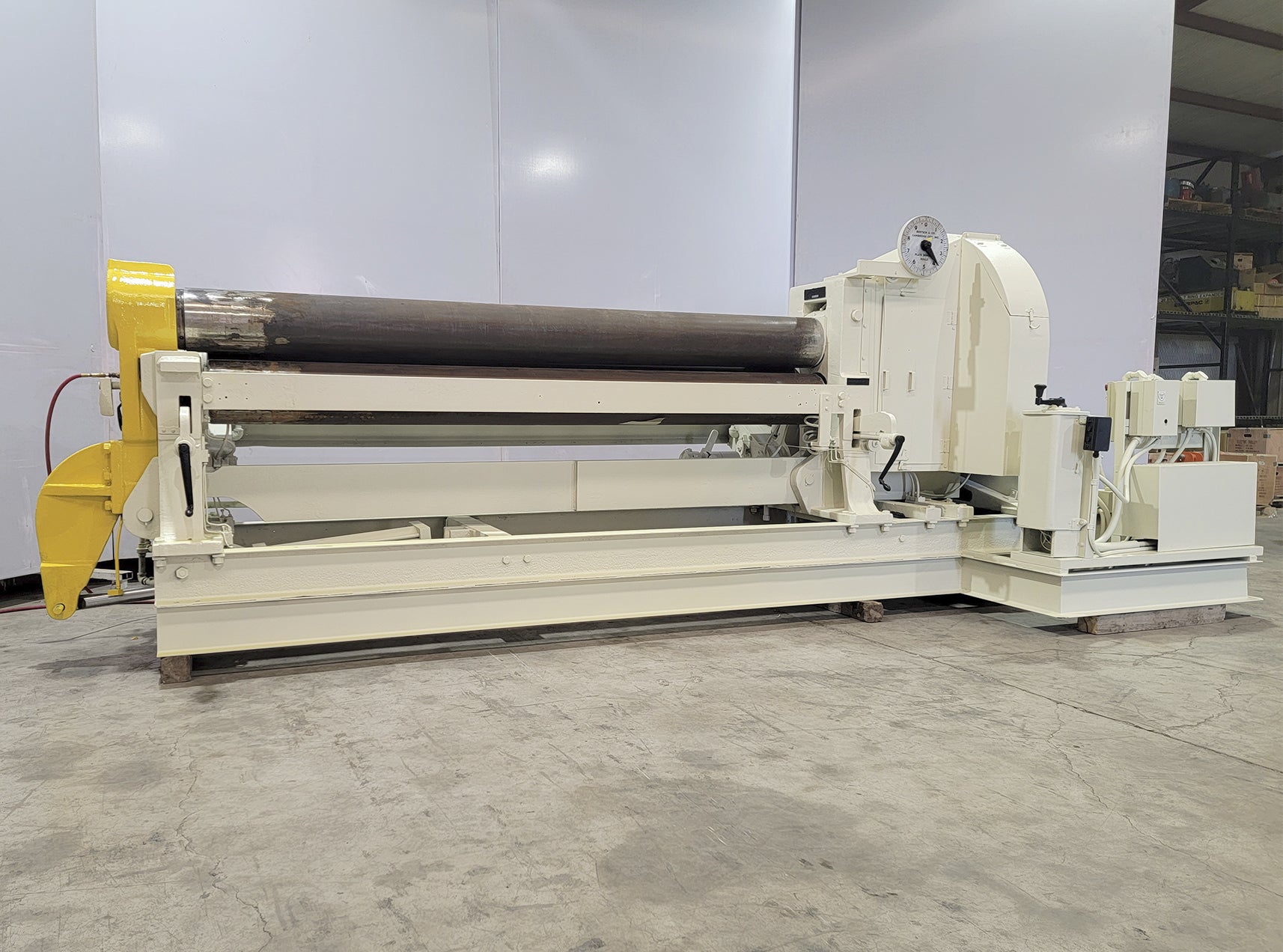

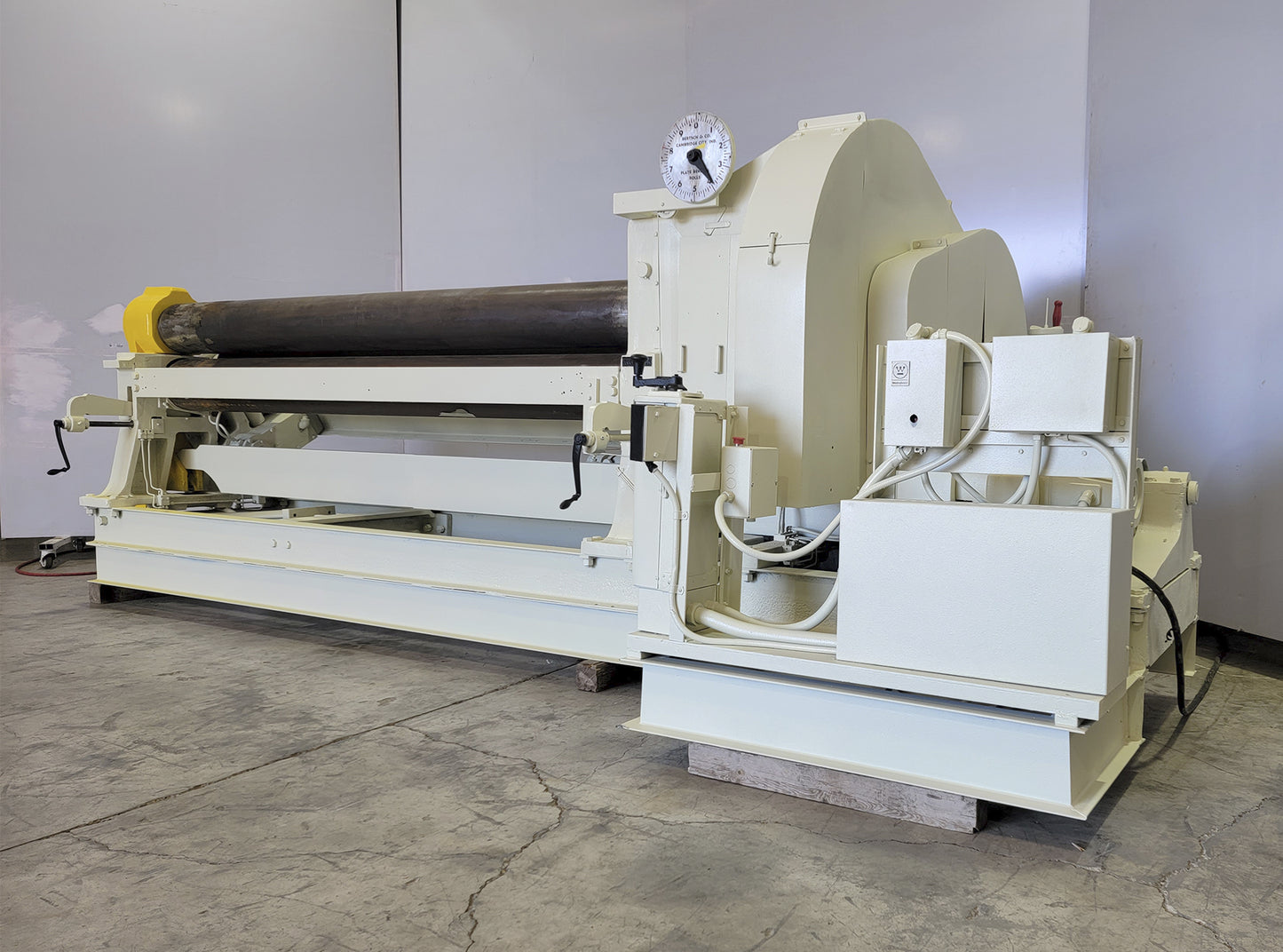

Bertsch Plate Roll 10' x 3/8"

Specification

• Make: Bertsch
• Model: SM
• Serial: M-9878
• Product Code: 03040137201

Product Information

• Type: Mechanical

• Capacity: 10' x 3/8"

• Diameter of rolls: 10"

• Rolled type: Double initial pinch

• HP: 20

• Dimensions: 116" x 245" x 78"

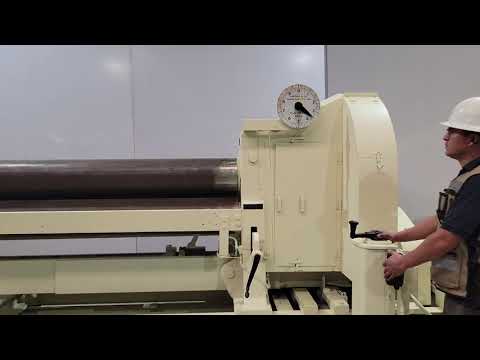

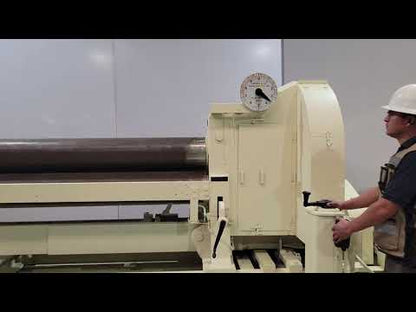

Video: YouTube

This Bertsch Mechanical Plate Roll is a powerhouse engineered for heavy-duty metal fabrication, featuring a 10' x 3/8" capacity and precision-ground 10" diameter rolls. Designed with Double Pinch (Double Initial) technology, this machine maximizes throughput by allowing you to pre-bend both plate ends in a single pass, significantly reducing material waste and handling time. Powered by a rugged 20 HP motor, it is the ideal solution for rolling tanks, pressure vessels, and industrial ductwork, delivering the structural integrity and repeatable accuracy that high-production shops demand.
