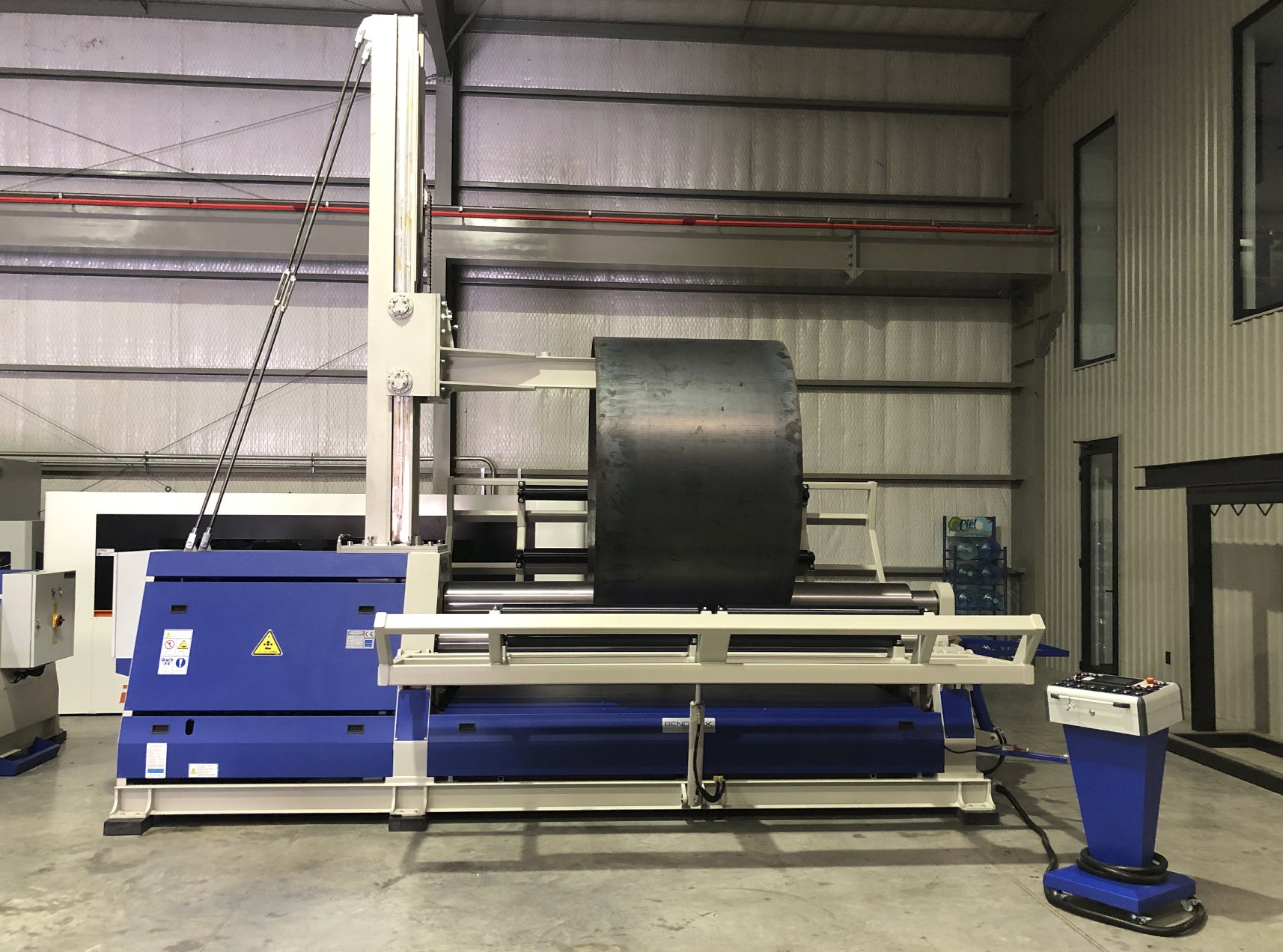

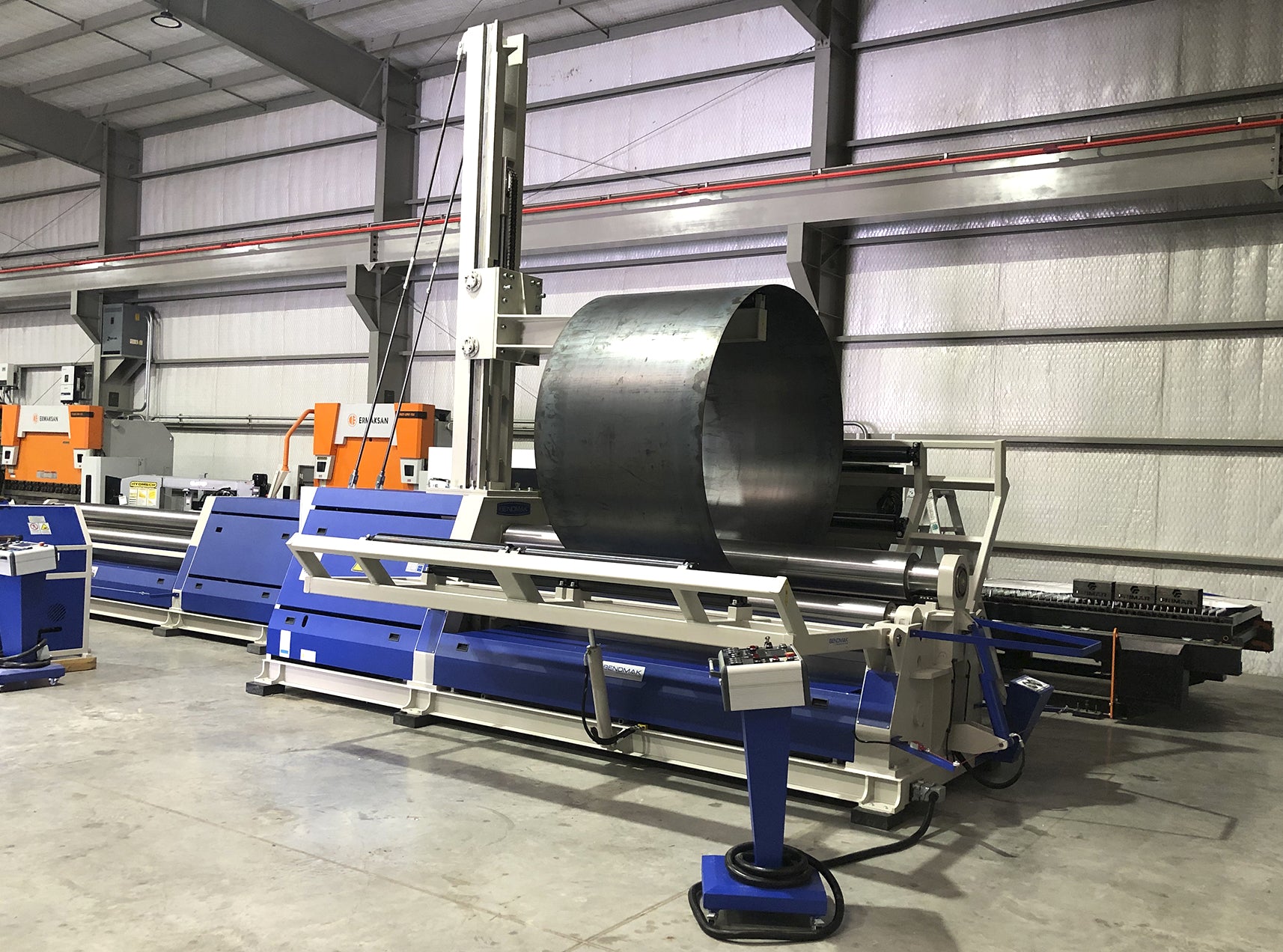

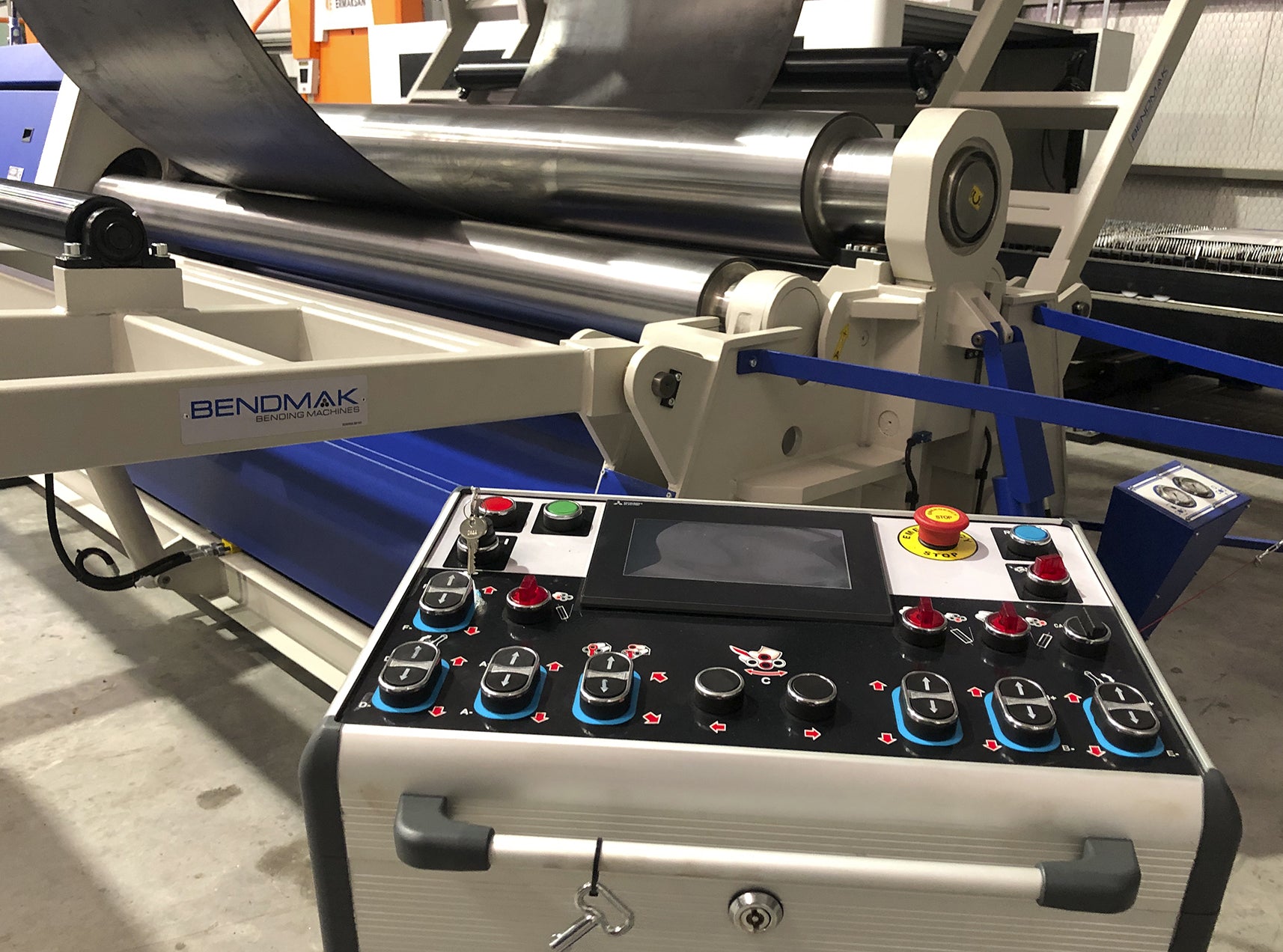

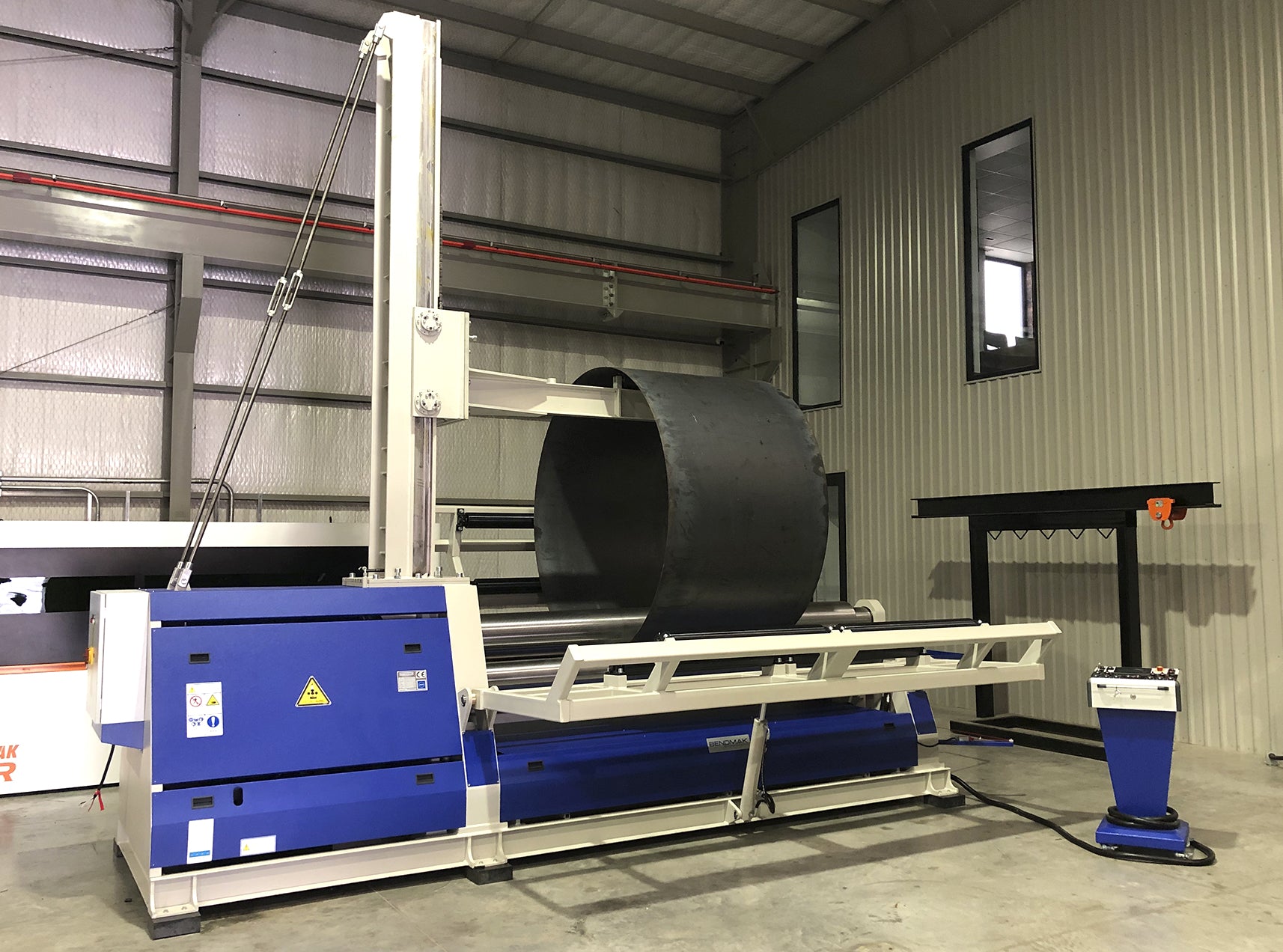

Bendmak CY4R-HHS 300-30/13 Plate Roll 10' x 1/2" (New Product)

Specification

• Make: Bendmak

• Model: CY4R-HHS 300-30/13

• Serial: SY300-370
• Product Code: 03040137205

Product Information

• Type: Hydraulic

• Capacity: 10' x 1/2"

• Rolls: 4

• Diameter of rolls: Higher: 11.81", Lower: 10.62", Sides: 8.26"

• Rolled type: Double initial pinch

• Pre Bend: 3/8"

• HP: 15

• Overhead and side supports for material

• Voltage / Phase: 220 / 3

• Weight: 21,870lbs

• Dimensions: 109" x 254" x 84"

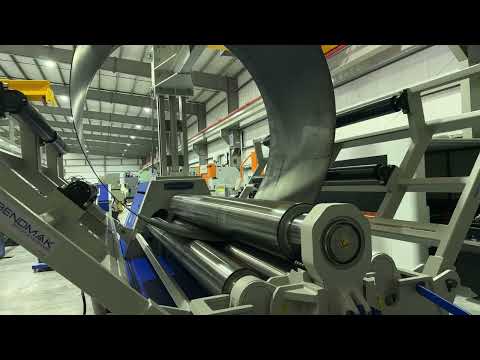

Video: YouTube

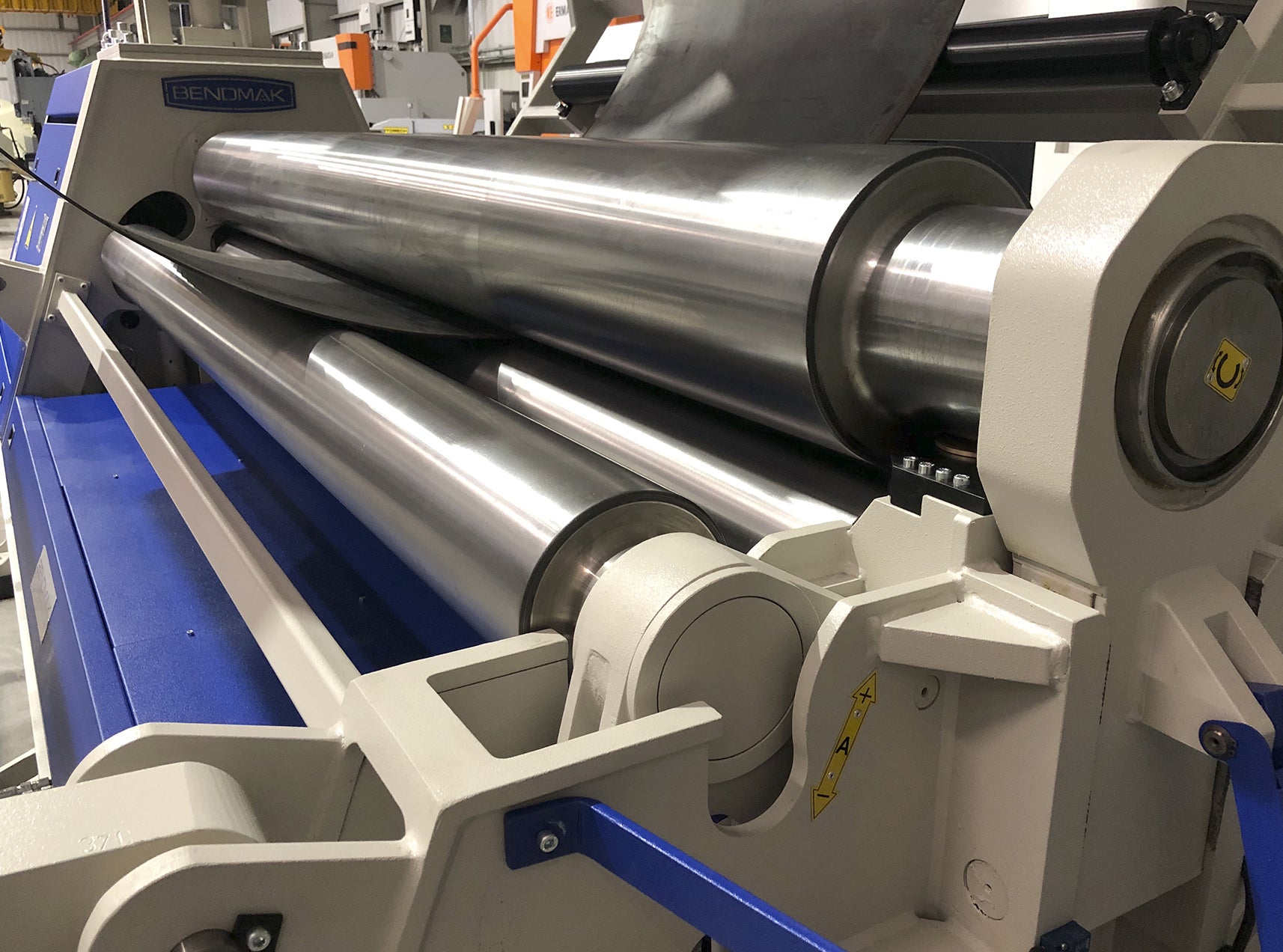

Take your shop to the next level with the Bendmak CY4R-HHS 300-30/13 hydraulic plate rolling machine, the ultimate high-performance solution in metal forming machinery. Engineered with an advanced 4-roll system (11.81" top roll, 10.62" bottom roll, and 8.26" side rolls) and a heavy-duty 10' x 1/2" capacity, this machine delivers double-pinch rolling that maximizes precision and operator safety by keeping the sheet perfectly clamped. Its powerful 15 HP motor, 3/8" pre-bending capability, and integrated top and side plate supports eliminate material deflection on large-scale jobs, drastically reducing cycle times and scrap rate. It is the perfect industrial plate roller for heavy fabrication of pressure vessels, silos, shells, and conical structures, guaranteeing flawless cylinder rolling with maximum efficiency and ROI for your business.
